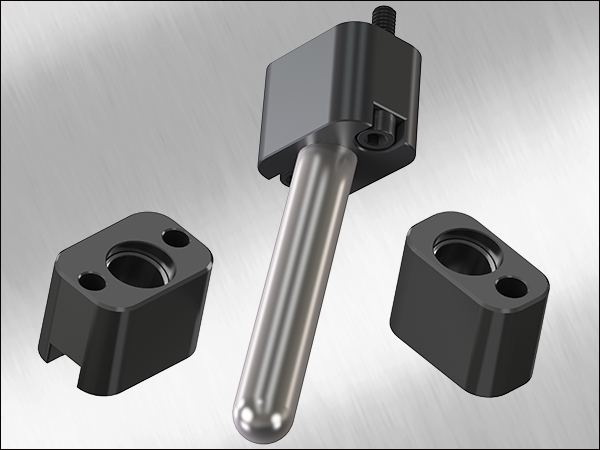

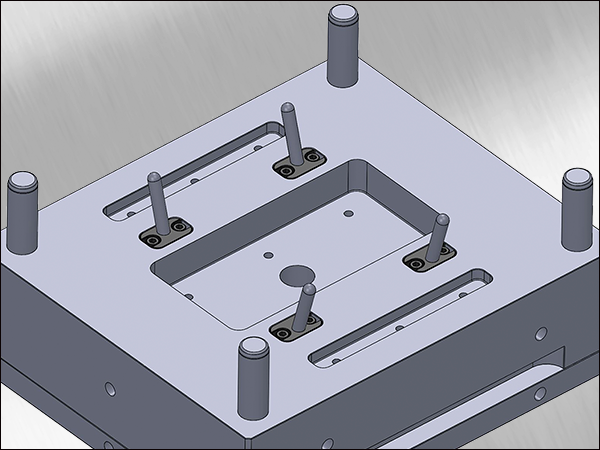

ANGLE PIN HOLDERS
- Eliminates angled machining for mold builders.
- Easily replace angle pins from the parting line while the mold remains in the press.
- Offered in 48 sizes with 10°, 15°, or 20° angles for 3/8”, 1/2”, 5/8”, 3/4” and 1″ diameters.
- Angle Pins can be ordered cut to length with the radius machined.
For more info, catalog pages, and CAD Geometry…

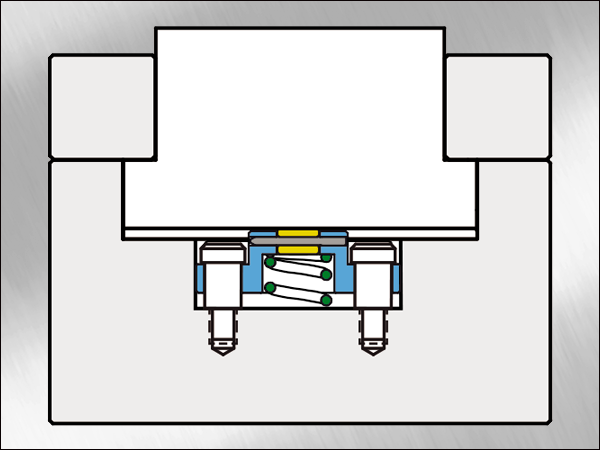

SRT SLIDE LOCK RETAINERS
- Compatible with previous standards.
- The SRT SLK’s roller design will not wear the bottom of slides.
- Greaseless performance in medical and cosmetic applications.
- Three size options feature color-coded springs to indicate force rating, each reliably hold 25 to 50 pounds.
- Optional cleats are available for retention on the slide or machine the V-groove for roller retention at the bottom of the slide.
For more info, catalog pages, and CAD Geometry…

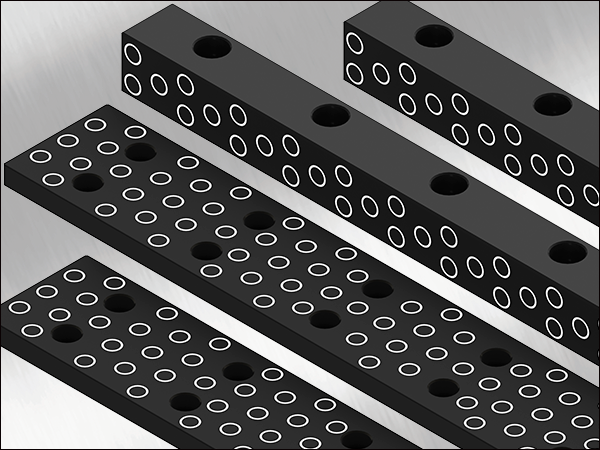

GIBS AND WEAR STRIPS
- Time-saving approach for side action applications, standard Gib Bars and Wear Strips arrive ready to be cut to the finished length and installed.
- Feature’s Progressive’s Black Nitride treatment to provide smooth, greaseless performance.
- Gibs are available in six sizes with lengths from 2″ to 13.5″ long.
- Wear Strips are offered in eight sizes with lengths ranging from 6″ to 13.5″ long.
For more info, catalog pages, and CAD Geometry…
