Black Nitride

Unmatched Performance

Black Nitride products from Progressive are proven to perform in medical cleanroom molding environments, cosmetic/appearance product production, harsh conditions such as die casting, and beyond.

Black Nitride (BN) is diffused .003”-.005” into the component, and is not an additive process that can wear off and end up in your parts, like DLC and other surface coatings.

View a video excerpt from a past Webinar that presents an exclusive Pin and Sleeve combination that delivers great performance for long run cleanroom tooling to harsh die casting applications.

Play Video

Click HERE to see Progressive Components in action.

Slide2
“Progressive's Black Nitride Core Pins outlast all other 5 to 1. We trust these pins to perform in the harshest conditions.”

~ Dan Sheridan, Twin City Die Castings

New Greaseless ejector Sleeves

To expand its offering of Ejector Sleeves, Progressive has added treatments for greaseless applications.

Black Nitride Ejector Sleeves have a precision honed lubricious surface that does not require grease in cleanroom applications, and a high hardness (66-70 HRC) that is suited for harsh conditions such as with die casting.

“When the BN Series Sleeves are combined with Progressive’s Through-Hard Ejector Pins, the dimensional specifications provide the industry’s closest combined precision fit and tolerance between pin and sleeve,” states Glenn Starkey, Progressive’s President. “Unlike PVD processes such as diamond-like coatings (DLC), black nitride penetrates the steel’s substrate and won’t chip, flake, or peel.”

AS FEATURED IN mOLDMAKING TECHNOLOGY MAGAZINE

Case Study: Twin City Die Castings Co.

PROBLEM: Die soldering during casting process was degrading core pin surfaces, which required cleaning three to four times per shift, and
replacement every month.

SOLUTION: Switch to black nitride custom core pins from Progressive Components.

RESULTS: Cleaning was reduced, replacement intervals extended five times thanks to greater longevity gained from using black nitride products.

Black Nitride Products

  • Black Nitride treatment reduces hole damage caused by galling.
  • Proven to reduce the incidence of repair for stuck ejector pins.
  • Specialized treatment outlasts conventional leader pins and bushings.
  • Manufactured to withstand pressure of hard-to-align dies with diagonal thermal expansion.
  • Largest standard lock in the industry, sized for deflection resistance.
  • Large landing area offers improved part precision, reduces trimming.
  • Black Nitride treatment reduces hole damage caused by galling.

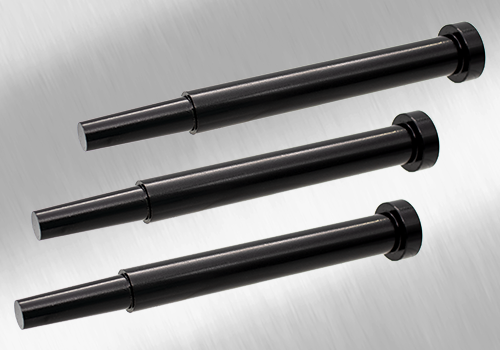

  • Core Pin hardness 50-55 HRC, comes complete with finished detail.
  • Precision honed lubricious surface that does not require grease.
  • High hardness of 66-70 HRC that is suited for harsh conditions.
  • Superior wear resistance, and includes particle rings for lubrication retention.
  • Standards sizes eliminates the need to manufacture in-house.

For questions and more information on our Black Nitride offering:
