LIFTER SUPPORT OPTIONS

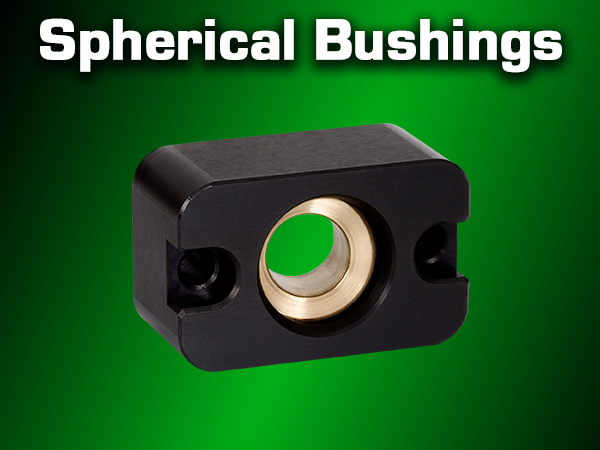

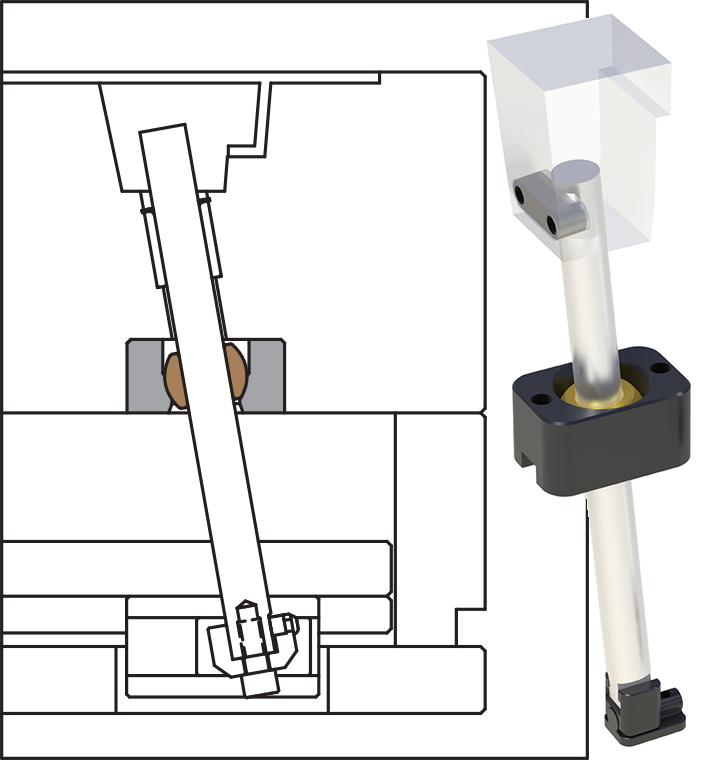

- Spherical Bushings provide core blades (round or square) with support during the ejection stroke.
- Self-adjusting so that any minor ejector plate misalignment doesn’t cause side loads and wear between core blades and inserts.
- Specific diameters are available, but blanks can also be purchased for use with square or non-standard lifter blades.
For additional info, catalog pages, CAD geometry, and more:
ADDITIONAL LIFTER ACCESSORIES

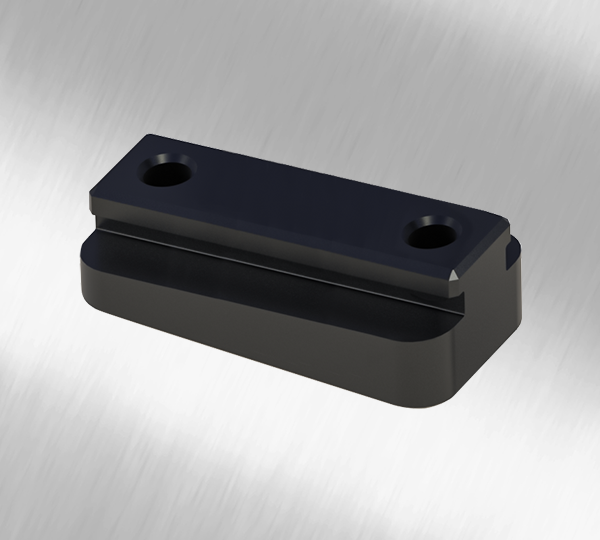

ANGLED LIFTER T-GIBS
- Accelerate or decelerate a lifter with standard Angled T-Gibs.
- Available in 5° and 10°.

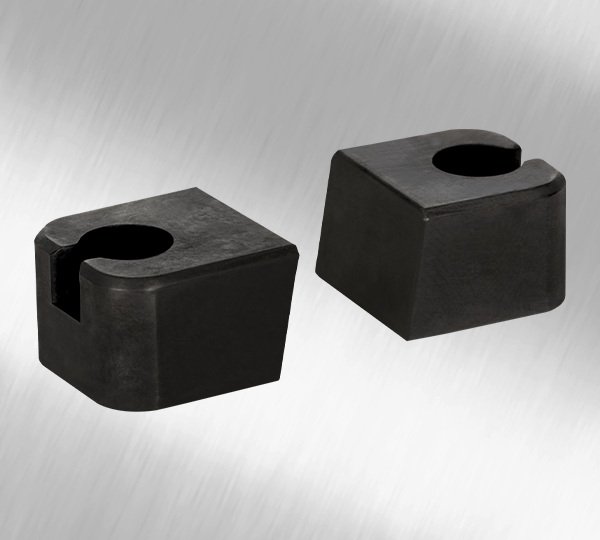

LIFTER GUIDES
- Hardened lifter support guides for standard core blade sizes.
- Common angles of 5°-10°-15° work well with traditional flat core blades.

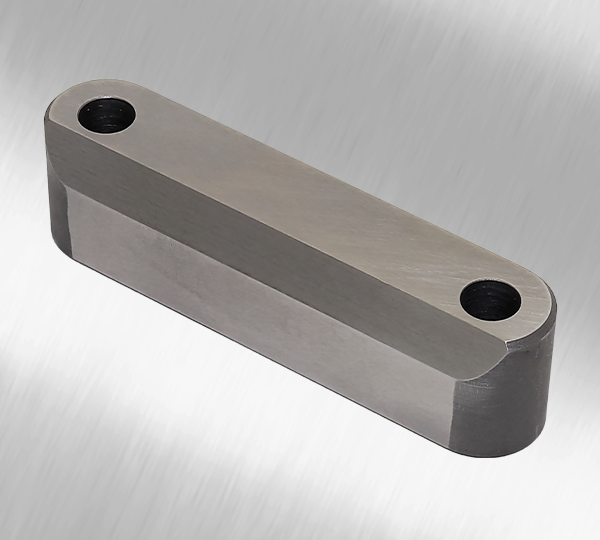

LIFTER HEAD KEYS
- Lifter Head Keys secure the lifter head to the lifter rod.
- Available in multiple sizes for standard lifter rod diameters.
