CENTER FLOATING INSERTS
FOR ALIGNMENT
- Radial Springs lift and center floating inserts to pre-align cores before a mold’s cavity interlocks engage.

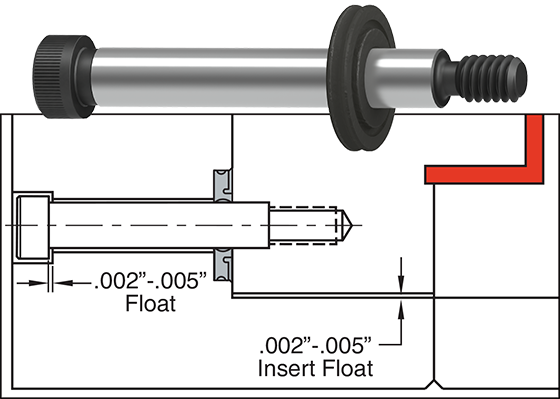

- Rather than rigidly bolting inserts to the mold base, stripper bolts allow the Radial Spring’s pressure to reduce side forces and pressure on alignment locks.
- Previous design practices utilized disc springs to provide preload in the Z axis, but Progressive’s new Radial Springs go a step further by positioning the core insert in the X and Y axis for minimal force to be experienced with the initial lock engagement.

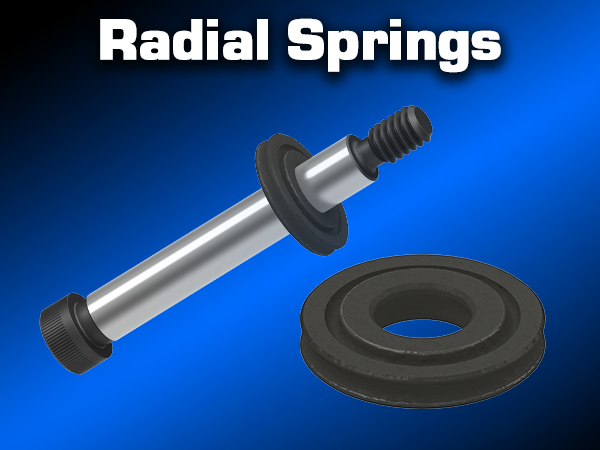

- Radial Springs are available in four sizes to fit Progressive’s Stripper Bolt diameters of 1/4″, 5/16″, 3/8″, and 1/2″.
- For alignment, Progressive carries Cavity Interlocks in both a round and a flat series.

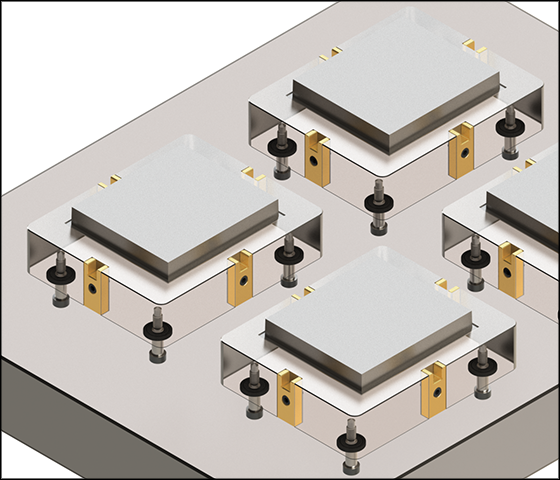

Install on core half as shown above.
For best performance, use four Stripper Bolts and Radial Springs per insert with four Cavity Locks.
For additional information, catalog page, and CAD Geometry…
