PRECISE ALIGNMENT
- Sized for nominal plate and insert thicknesses.
- Highest amount of locking surface is provided for the minimum amount of space to be machined.
- Mounts directly into the mold’s inserts.
- Flat Series begins at 5/8″ width, easily alter length to suit.
- Round Series available in 1/4″, 3/8″, and 1/2″ diameters and installs from the parting line

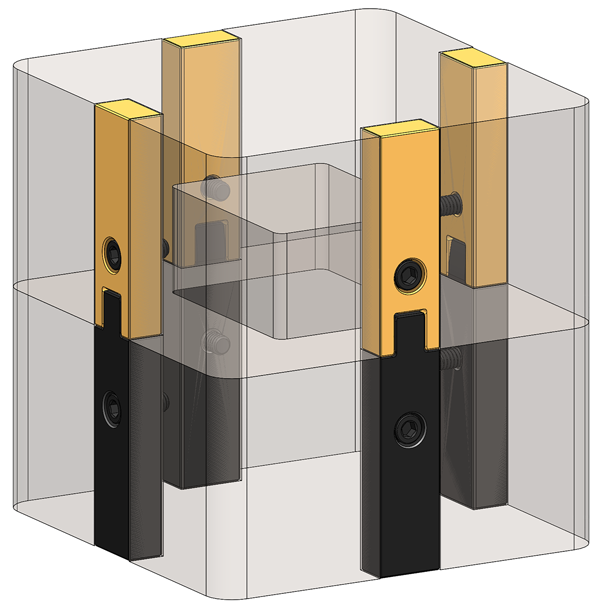

Flat Series Closed

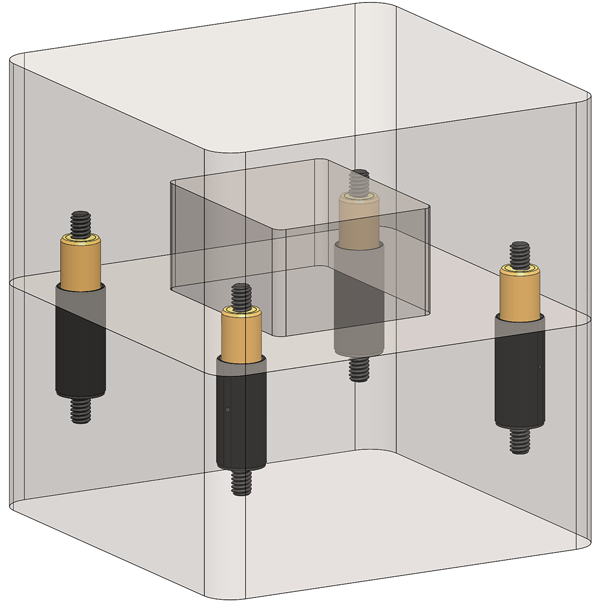

Round Series Closed

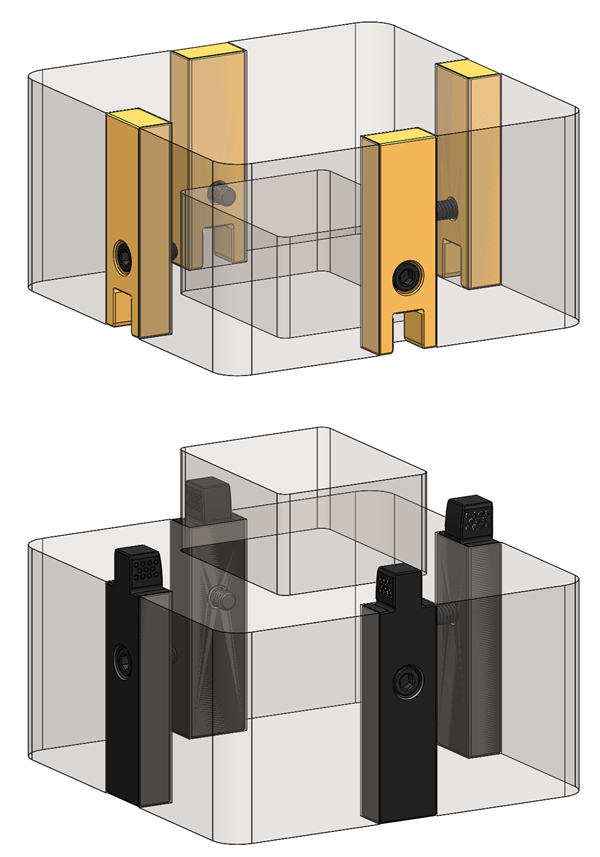

Flat Series Open

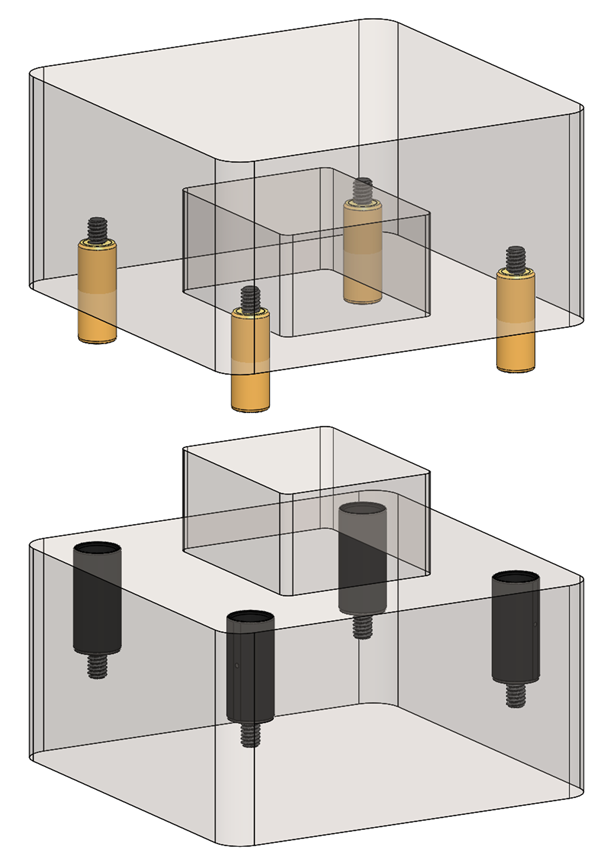

Round Series Open
For Catalog Pages, CAD Geometry, and more…
